TKM28系列減速機是一款采用新一代傘齒輪與斜齒輪傳動技術的高性能減速設備。該產品憑借高達95%的卓越傳動效率，完美替代了傳統的NMRV050蝸輪蝸桿減速機，為現代機械設備提供了更節能、更強勁的動力解決方案。

TKM28B減速機型號有：TKM28B-7.5-Y0.12KW-4P,TKM28B-7.5-Y0.18KW-4P,TKM28B-15-Y0.25KW-4P,TKM28B-7.5-Y0.37KW-4P,TKM28B-7.5-Y0.55KW-4P,TKM28B-7.5-Y0.75KW-4P,TKM28B-7.5-Y1.1KW-4P,TKM28B-7.5-Y1.5KW-4P,TKM28B-10-Y0.12KW-4P,TKM28B-10-Y0.18KW-4P,TKM28B-20-Y0.25KW-4P,TKM28B-10-Y0.37KW-4P,TKM28B-10-Y0.55KW-4P,TKM28B-10-Y0.75KW-4P,TKM28B-10-Y1.1KW-4P,TKM28B-10-Y1.5KW-4P,TKM28B-12.5-Y0.12KW-4P,TKM28B-12.5-Y0.18KW-4P,TKM28B-25-Y0.25KW-4P,TKM28B-12.5-Y0.37KW-4P,TKM28B-12.5-Y0.55KW-4P,TKM28B-12.5-Y0.75KW-4P,TKM28B-12.5-Y1.1KW-4P,TKM28B-12.5-Y1.5KW-4P,TKM28B-15-Y0.12KW-4P,TKM28B-15-Y0.18KW-4P,TKM28B-30-Y0.25KW-4P,TKM28B-15-Y0.37KW-4P,TKM28B-15-Y0.55KW-4P,TKM28B-15-Y0.75KW-4P,TKM28B-20-Y0.12KW-4P,TKM28B-20-Y0.18KW-4P,TKM28B-40-Y0.25KW-4P,TKM28B-20-Y0.37KW-4P,TKM28B-20-Y0.55KW-4P,TKM28B-20-Y0.75KW-4P,TKM28B-25-Y0.12KW-4P,TKM28B-25-Y0.18KW-4P,TKM28B-50-Y0.25KW-4P,TKM28B-25-Y0.37KW-4P,TKM28B-25-Y0.55KW-4P,TKM28B-25-Y0.75KW-4P,TKM28B-30-Y0.12KW-4P,TKM28B-30-Y0.18KW-4P,TKM28B-60-Y0.25KW-4P,TKM28B-30-Y0.37KW-4P,TKM28B-30-Y0.55KW-4P,TKM28B-30-Y0.75KW-4P,TKM28B-40-Y0.12KW-4P,TKM28B-40-Y0.18KW-4P,TKM28B-40-Y0.37KW-4P,TKM28B-40-Y0.55KW-4P,TKM28B-50-Y0.12KW-4P,TKM28B-50-Y0.18KW-4P,TKM28B-50-Y0.37KW-4P,TKM28B-60-Y0.12KW-4P,TKM28B-60-Y0.18KW-4P,TKM28B-60-Y0.37KW-4P

TKM28C減速機型號有：TKM28C-50-Y0.12KW-4P,TKM28C-50-Y0.18KW-4P,TKM28C-50-Y0.25KW-4P,TKM28C-60-Y0.12KW-4P,TKM28C-60-Y0.18KW-4P,TKM28C-60-Y0.25KW-4P,TKM28C-75-Y0.12KW-4P,TKM28C-75-Y0.18KW-4P,TKM28C-100-Y0.12KW-4P,TKM28C-100-Y0.18KW-4P,TKM28C-125-Y0.12KW-4P,TKM28C-125-Y0.18KW-4P,TKM28C-150-Y0.12KW-4P,TKM28C-200-Y0.12KW-4P,TKM28C-250-Y0.12KW-4P

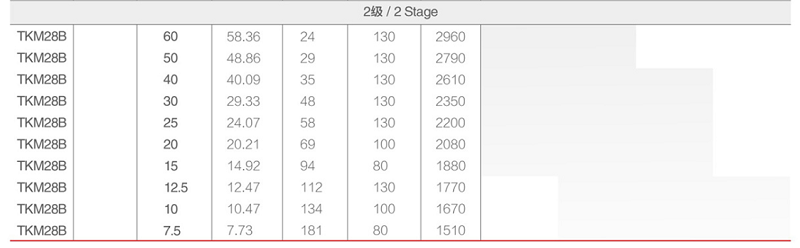

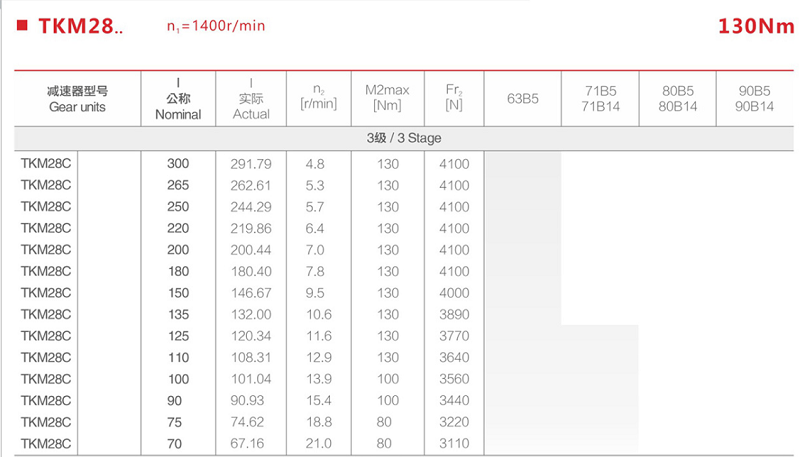

核心產品參數

• 適配型號：TKM28B（2級傳動）、TKM28C（3級傳動）

• 電機功率：0.12KW - 1.5KW

• 減速比范圍：7.5 - 300比

• 傳動效率：95%（傘齒輪與斜齒輪組合傳動）

•

•


•


產品
核心優勢

• 傳動效率高節能，替代蝸輪蝸桿
  內部采用精密的傘齒輪與斜齒輪傳動結構，傳動效率高達95%。相比傳統蝸輪蝸桿減速機（通常效率在60%-70%左右），TKM28系列能大幅減少能量損耗，實現真正的節能環保，并有效降低長期運行成本。

• 完美兼容，升級無憂
  專為替代NMRV050蝸輪蝸桿減速機而設計，安裝尺寸完全兼容。在設備升級或替換時，無需更改原有機械結構，即可直接安裝使用，極大降低了改造難度與時間成本。

• 動力強勁，規格齊全
  提供TKM28B和TKM28C兩種內部結構，覆蓋7.5至300的寬廣減速比范圍，并適配0.12KW至1.5KW的電機功率。無論是需要低速大扭矩，還是精密傳動控制，都能提供精準的動力匹配。

• 結構緊湊，運行平穩
  得益于斜齒-準雙曲面齒輪的優化設計，該系列減速機具有體積小、重量輕的特點。齒輪經過高精度加工與硬齒面處理，嚙合更順滑，確保了設備在長期運行中具備低噪音、高穩定性的優異表現。

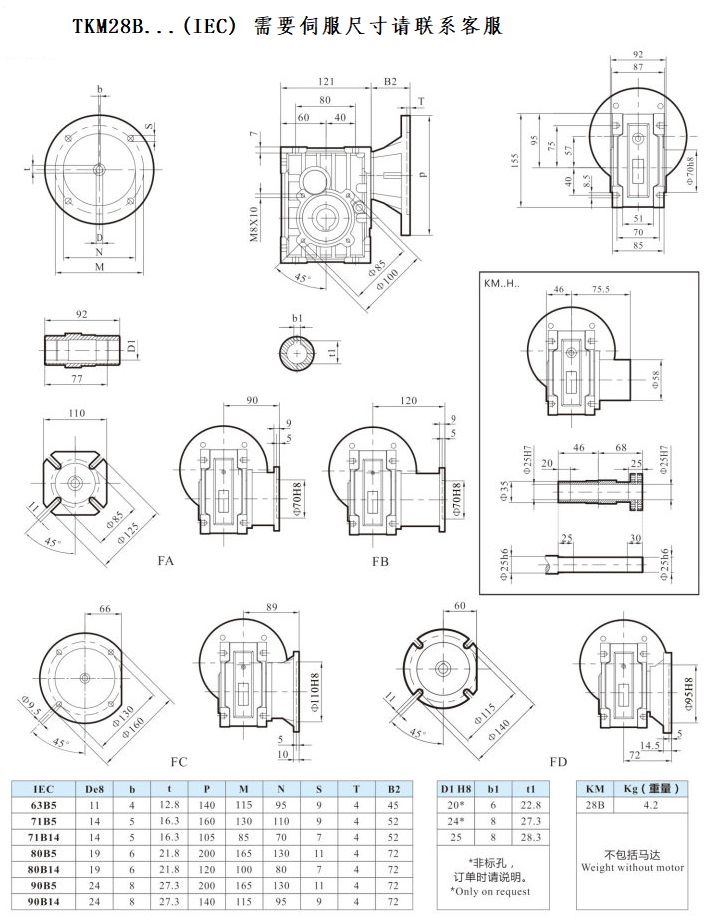

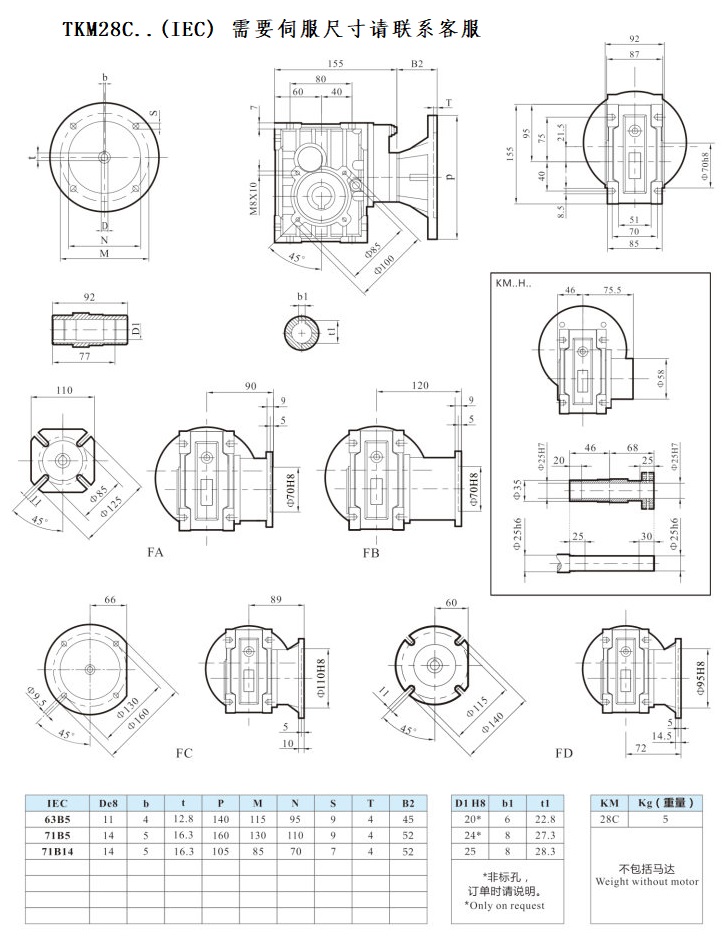

• 下面是TKM28減速電機的安裝尺寸，需要高清安裝尺寸的請聯系客服

•

•


適用領域

TKM28系列減速機廣泛應用于各類自動化機械設備中，如食品飲料機械、包裝機械、紡織機械、輸送帶、木工機械等，是提升設備整體性能與傳動效率的理想選擇。
