GH40標準型減速電機型號大全附尺寸圖

GH40臥式斜齒輪減速機型號：CH40-750W-125SB、CH40-750W-140SB、CH40-750W-160SB、CH40-750W-180SB、CH40-750W-200SB

CH40-1.5KW-40SB、CH40-1.5KW-50SB、CH40-1.5KW-60SB、CH40-1.5KW-70SB、CH40-1.5KW-80SB、CH40-1.5KW-90SB、CH40-1.5KW-100SB

CH40-3.7KW-3SB、CH40-3.7KW-5SB、CH40-3.7KW-10SB

CH40減速機匹配電機功率：750W 1.5KW 3.7KW

電機電壓：可單相 可三相

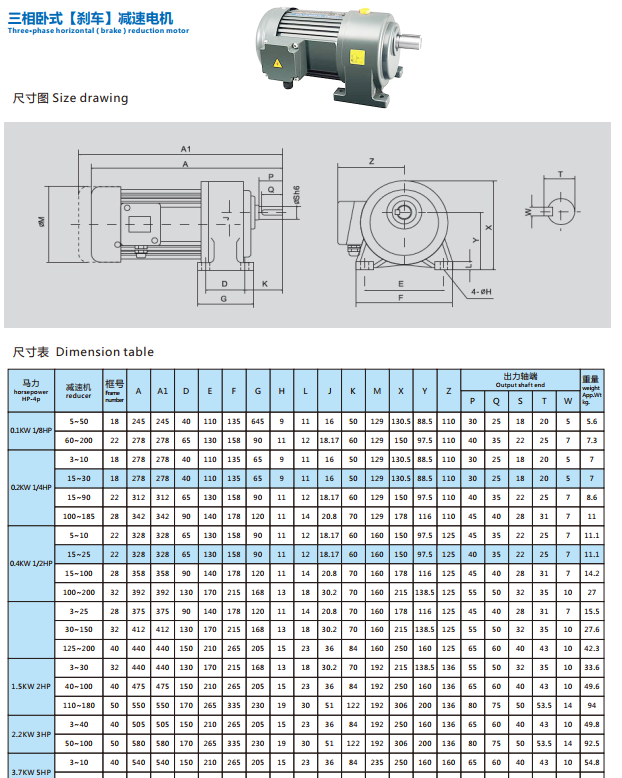

下面是CH40減速機的安裝尺寸，需要高清尺寸圖或對型號不理解的可以咨詢一下客服或撥打18029026613

CH40減速機：http://www.87ge.cn/products/213.html
